DP292FGBK

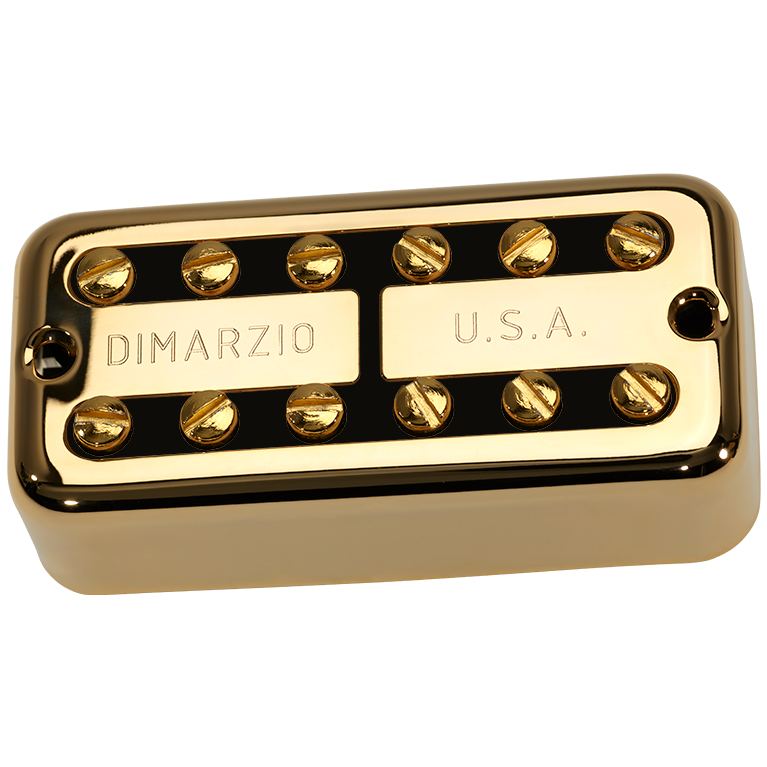

DP292FGBK. Pickup NEW'TRON, Bridge, F-spaced, Gold Cover with Black Insert.

The classic Filter'Tron sound resides somewhere between a Gibson ES-335 and a Fender Telecaster on the guitar tone spectrum. These hum-canceling pickups were designed by Ray Butts in the mid-50s, with input and direction from Chet Atkins for the Gretsch company. At that time, Atkins was working on an improved version of his signature guitar and voiced concerns about the noise produced by the single-coil pickups in the earlier iterations of his guitars.
The Filter'Tron™ is similar in its basic design to the Gibson humbucker. It utilizes two coils to generate the output and cancels unwanted noise when the coils are connected in series (Gretsch patent no. 2892371).
By the early 60s, this combination quickly became the choice for Rockabilly guitar players, and the sound of this pickup became the go-to sound for George Harrison on many of the Beatles' early recordings.
DiMarzio's New'Tron™ is our modern take on a Filter'tron-style pickup and is a direct size replacement. It is not a clone of a vintage Filter'Tron but rather a modern twist, capturing the best characteristics of this great guitar tone and enhancing them. The top-end response is dynamic but not overly bright, with just the right amount of presence and twang. The midrange has a unique growl and bite, especially when used with digital modeling amps and distortion, and the low end is consistently tight and punchy without becoming muddy. The New'Tron™ Bridge is louder than the traditional Filter'Tron pickup and is designed to balance with the New'Tron™ Neck, without losing any presence or clarity. Altogether, the DiMarzio New'Tron™ Bridge is a versatile pickup perfect for anything from clear, chiming cleans to a snarling Rockabilly edge.

The New'Tron™ Neck includes optional mounting hardware for humbucker mounting applications.

Recommended For Bridge.


DP292FGBK
Finish: Gold with Black Insert.
Pole pieces: Gold.
Quick Connect: Yes.
Wiring:4 Conductor.

Magnet: Alnico 5

Resistance: 8.20 Kohm

Year of Introduction: 2024

Tone guide:
Ourput: 290 mV
Bass: 3.0
Low mid: 3.5
High mid: 3.5
Treble: 7.0
